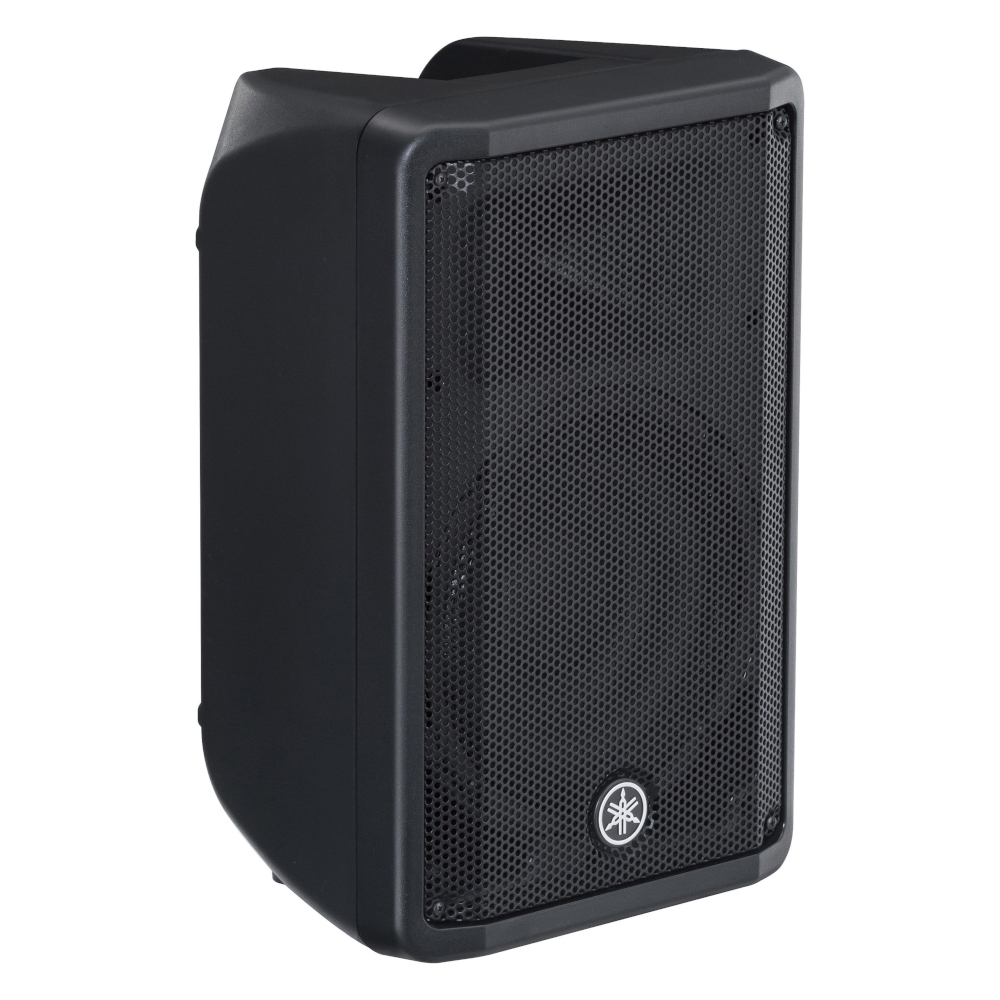

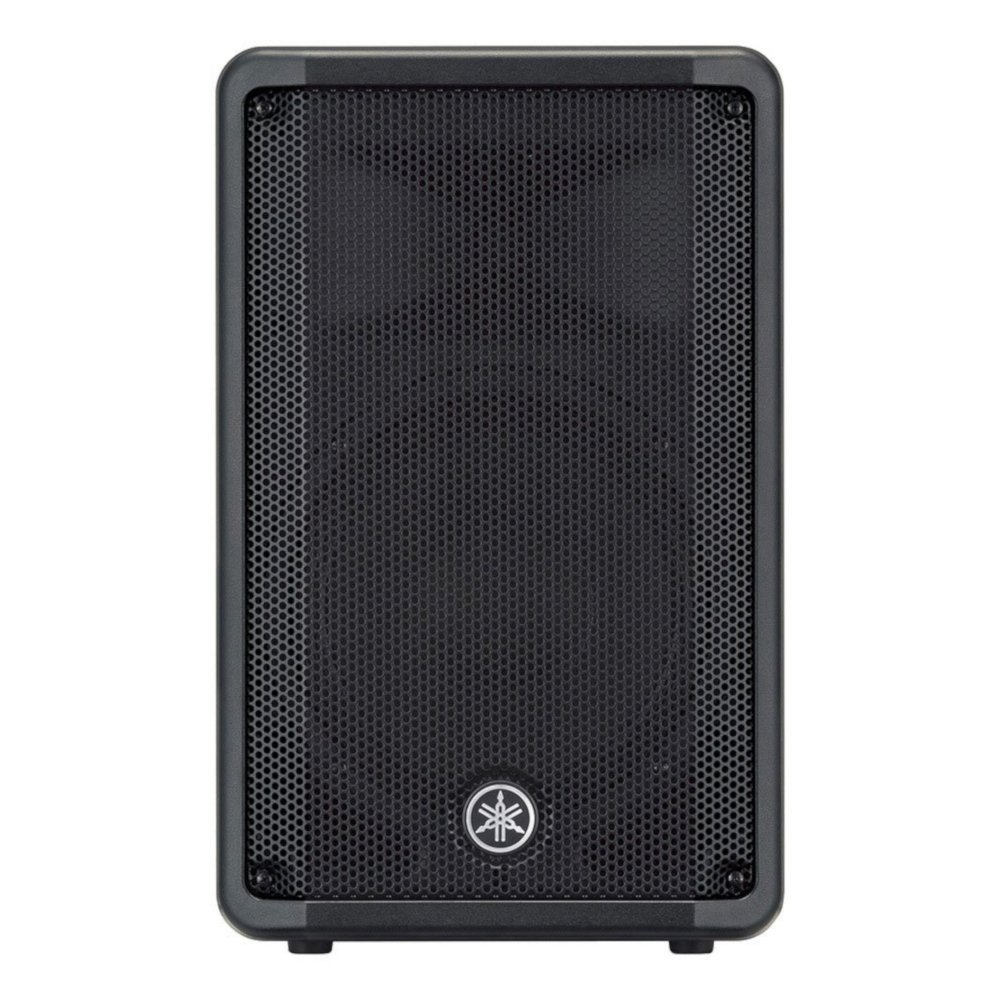

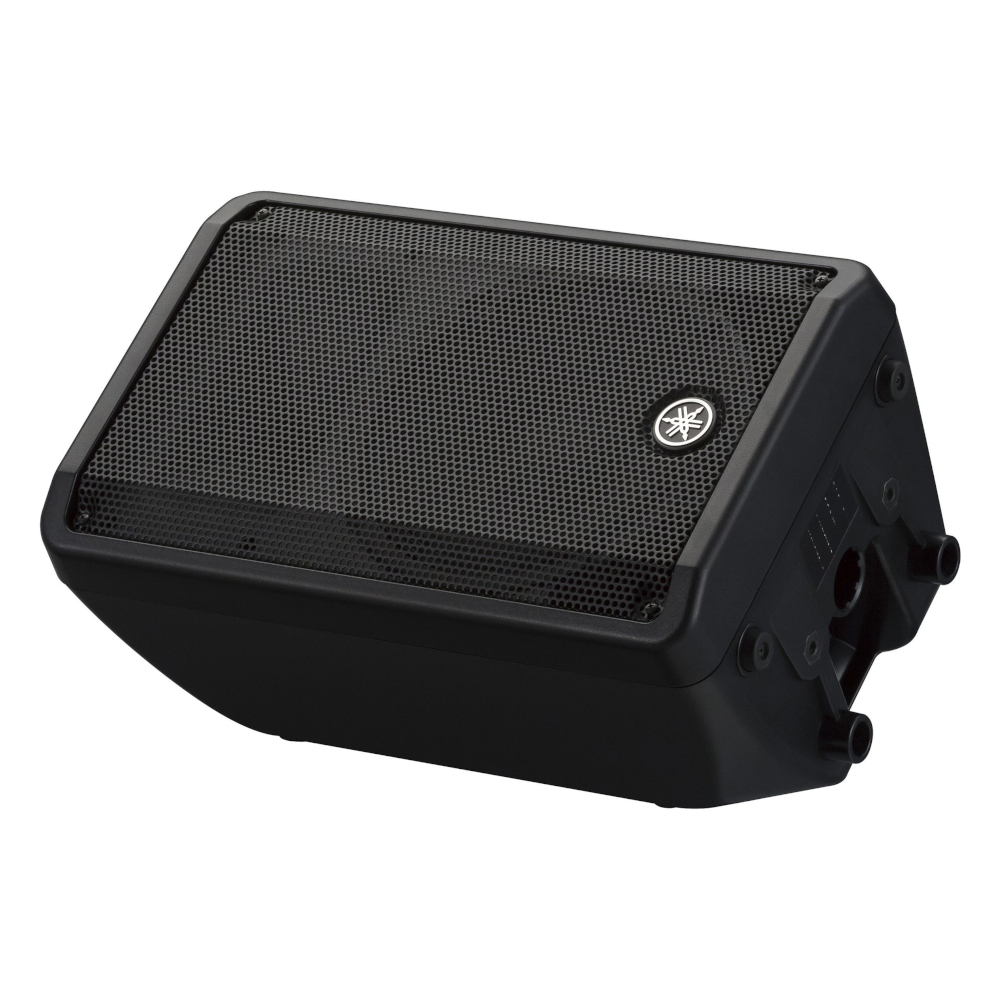

DBR10 Yamaha cabina activa 10″ 129dB


El DBR10 es el modelo más compacto de su serie y de su clase. Capaz de alcanzar una presión sonora (SPL) de 129 dB con su caja compacta, el DBR10 es un altavoz muy versátil que se puede utilizar en muchos tipos de aplicaciones.

Marca

Yamaha

DBR10
General specifications
Speaker type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 55Hz – 20kHz
Nominal coverage H 90°
V 60°
Components LF Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite
HF Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis) 129dB SPL

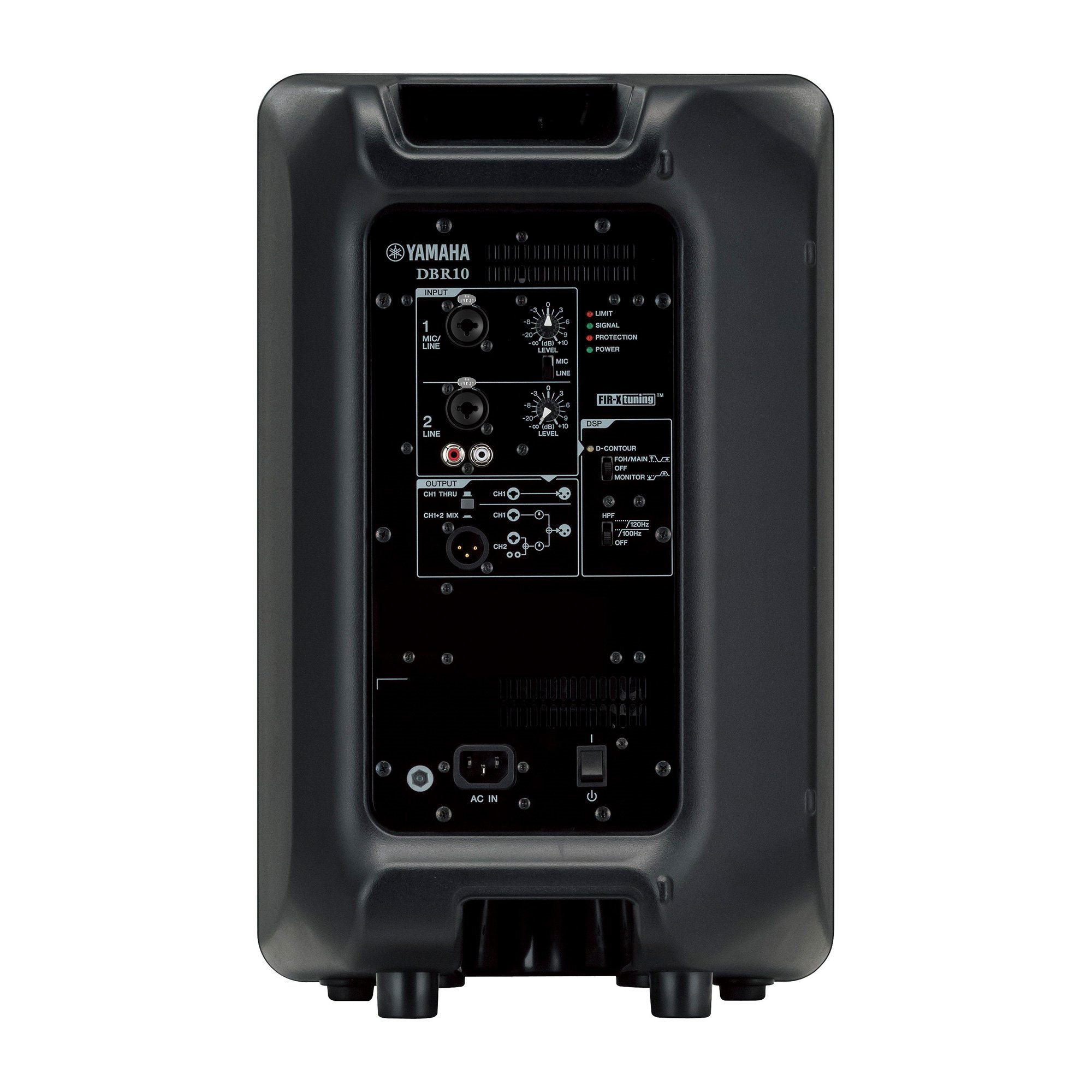

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds
Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption 60W(1/8 Power Consumption), 18W(Idle)
Cabinet material Plastic
Acabado Black
Handle Top x 1
Flying and mounting hardware Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket 35mm (Bottom x 1)
Dimensions W 308mm (12.1″)
H 493mm (19.4″)
D 289mm (11.4″)
Net weight 10.5 kg (23.2 lbs)
Accessorios BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
